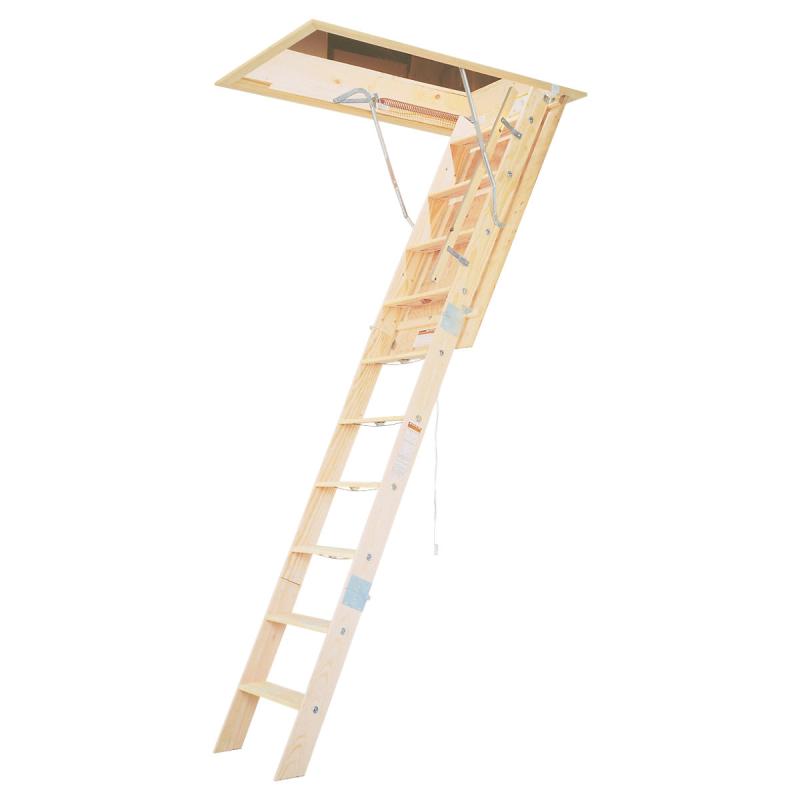

WH2210 22.5" W x 54" L x 10' Ceiling Heavy Duty Wood Attic Ladder

WH2210

Werner Co.

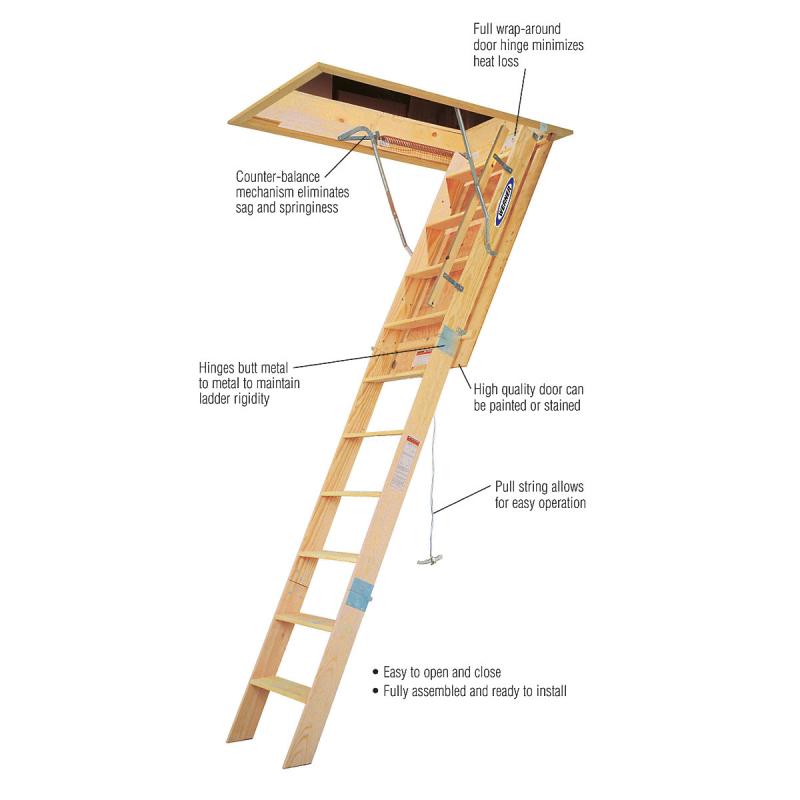

The WH series of wood Heavy Duty Attic Ladders boast a duty rating of 350 pounds. These ladders come fully assembled and ready to install. Full wrap-around door hinge minimizes heat loss. High quality door can be painted or stained. Pull string allows for easy opening and closing. Hinges butt metal to metal to maintain ladder rigidity. Counter-balance mechanism eliminates sag and springiness.

(click image to enlarge)
Quick Overview

    Features:
    • Counter-balance mechanism eliminates sag and springiness
    • Full wrap-around door hinge minimizes heat loss
    • High quality door can be painted or stained
    • Hinges butt metal to metal to maintain ladder rigidity
    • Pull string allows for easy operation
    • Easy to open and close
    • Fully assembled and ready to install
Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (877) 473-5422
Email: Randall.Richards@RWLI.net

Can't find what you want? Give us a call and we can help you find it.
Details
Performance Overview
SizeLoad CapacityMaterial
10'350 lbsWood

Specifications
  • Size: 10'
  • Floor to Ceiling Height Range: 8'9" to 10'3"
  • Rough Opening Width x Length: 22-1/2" x 54"
  • Load Capacity: 350 lbs
  • Ladder Width: 14-1/4"
  • Landing Space Range: 5' 4"
  • Swing Clearance: 6'
  • Foot Material: wood
  • Locking Device: Spring
  • Opening Device: Rope
  • Door Material: Plywood
  • Frame Material: Pine
  • Full Width Door hinge: Yes
  • Metal-to-Metal Rail hinge: Yes
  • Requires Cutting Foot Angle: Yes
  • Number of People for Installation: 2
  • Certifications: ANSI A14.9 (2010)
  • Approx. Cu. Ft. Per Unit: 12.3
  • Approx. Shipping Wt. Lbs.: 76

Dimensions
  • Rail Size: 3/4" x 4-1/2"
  • Step Length: 12-3/4"
  • Step Width: 4-1/2"
  • Grooved Steps-Actual Lumber Size: 3/4" x 4-1/2"

Additional WH Series Models
Model No.SizeFloor to Ceiling Height RangeRough Opening Width x LengthLadder WidthLanding Space Range
WH22088'7' to 8'9"22-1/2" x 54"14-1/4"4' 8"
WH221010'8'9" to 10'3"22-1/2" x 54"14-1/4"5' 4"
WH25088'7' to 8'9"25" x 54"16-3/4"4' 8"
WH251010'8'9" to 10'3"25" x 54"16-3/4"5' 4"
WH30088'7' to 8'9"30-1/2" x 54"22-1/4"4' 8"
WH301010'8'9" to 10'3"30-1/2" x 54"22-1/4"5' 4"
Additional Information
Manufacturer: Werner Co.
