W2510 25" W x 54" L x 10' Ceiling Wood Attic Ladder

W2510

Werner Co.

The W Series wood attic ladders have a duty rating of 250 pounds and come fully assembled and ready to install. Full wrap-around door hinge minimizes heat loss. The quality door is ready for staining or painting. The pull string eases the opening and closing. Hinges butt metal to metal to maintain ladder rigidity. Counter-balance mechanism eliminates sag and springiness.

(click image to enlarge)
Quick Overview

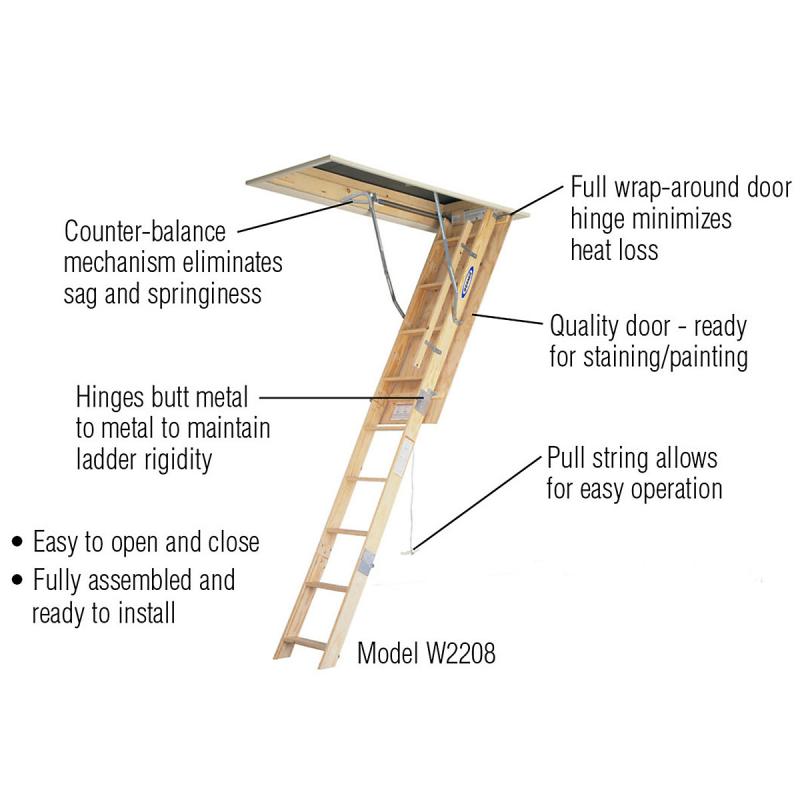

    Features:
    • Counter-balance mechanism eliminates sag and springiness
    • Full wrap-around door hinge minimizes heat loss
    • Quality door - ready for staining/painting
    • Hinges butt metal to metal to maintain ladder rigidity
    • Pull string allows for easy operation
    • Easy to open and close
    • Fully assembled and ready to install
Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (877) 473-5422
Email: Randall.Richards@RWLI.net

Can't find what you want? Give us a call and we can help you find it.
Details
Performance Overview
SizeLoad CapacityMaterial
10'250 lbsWood

Specifications
  • Size: 10'
  • Floor to Ceiling Height Range: 8'9" to 10'4"
  • Rough Opening Width x Length: 25" x 54"
  • Load Capacity: 250 lbs
  • Ladder Width: 16-3/4"
  • Landing Space Range: 5' 3"
  • Swing Clearance: 6' 2"
  • Foot Material: wood
  • Locking Device: Spring
  • Opening Device: Rope
  • Door Material: Plywood
  • Frame Material: Pine
  • Full Width Door hinge: Yes
  • Metal-to-Metal Rail hinge: Yes
  • Requires Cutting Foot Angle: Yes
  • Number of People for Installation: 2
  • Certifications: ANSI A14.9 (2010)
  • Approx. Cu. Ft. Per Unit: 9.3
  • Approx. Shipping Wt. Lbs.: 58

Dimensions
  • Rail Size: 3/4" x 3-1/2"
  • Step Length: 15-1/4"
  • Step Width: 3-1/2"
  • Grooved Steps-Actual Lumber Size: 3/4" x 3-1/2"

Additional W Series Models
Model No.SizeFloor to Ceiling Height RangeRough Opening Width x LengthLadder WidthLanding Space Range
W22088'7' to 8'9"22-1/2" x 54"14-1/4"4' 6"
W221010'8'9" to 10'4"22-1/2" x 54"14-1/4"5' 3"
W25088'7' to 8'9"25" x 54"16-3/4"4' 6"
W251010'8'9" to 10'4"25" x 54"16-3/4"5' 3"
Additional Information
Manufacturer: Werner Co.
