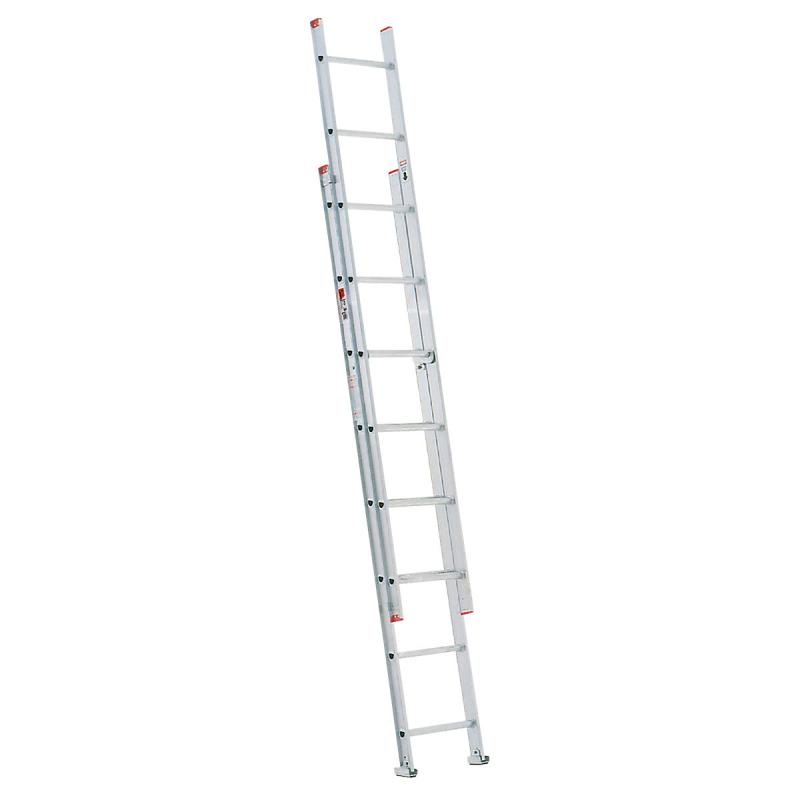

The model D716-2 is a lightweight aluminum extension ladder with a duty rating of 200 pounds. The fixed lock allows easy push-up height adjustments. The exclusive ALFLO rung joint means TWIST-PROOF performance, and the mar-resistant end caps help protect the surface ladder is leaning against. TRACTION-TRED D rungs are slip resistant, and the side rails are modified I-beams.

(click image to enlarge)

Quick Overview

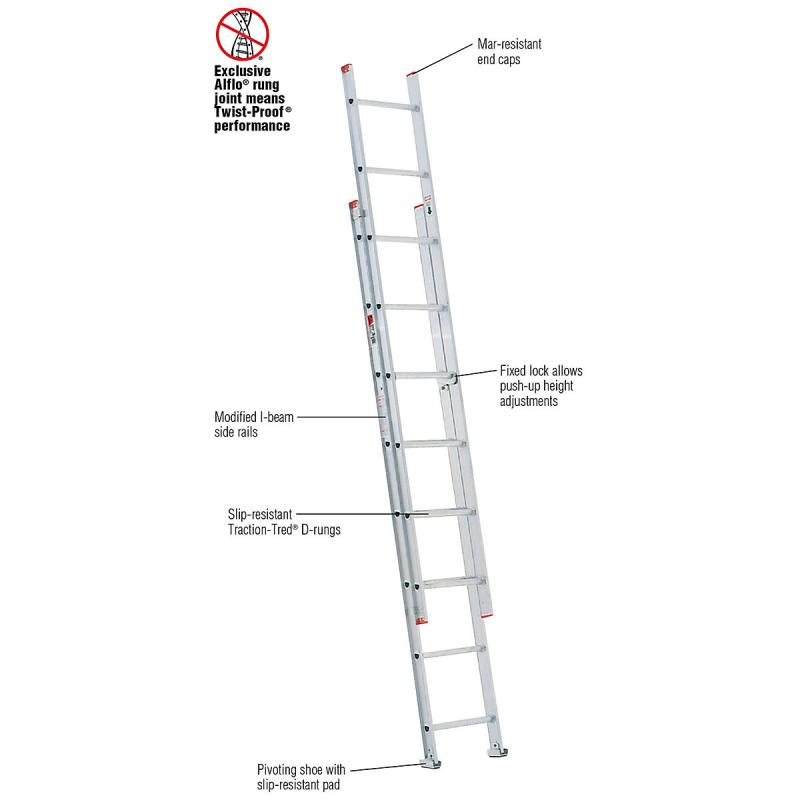

Features include:

Exclusive ALFLO rung joint means TWIST-PROOF performance
Mar-resistant end caps
Fixed locks allow ladder to be easily adjusted in 1' increments
Modified I-beam side rails for strength
Slip-resistant Traction-Tred D-rungs
Pivoting shoe with slip-resistant pad

Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (877) 473-5422
Email: Randall.Richards@RWLI.net

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 2-1/2"

Flange Dimension: 3/4"

Rung Dimension: 1-1/4"

Base Width: 15-3/4" outside rails

Specifications

Size: 16'

Reach Height: 15'

Max Working Length: 13'

Load Capacity: 200 lbs.

Type: Type III Duty Rating

Performance Rating: 1 Star

Material: Aluminum

Rung Type: D

Foot Material: Slip-resistant pad

Number of Sections: 2

Certifications: ANSI A14.2 (2007)

Approx. Cu. Ft. Per Unit: 4.6

Approx. Shipping Wt. Lbs.: 17.5

Additional Information

Manufacturer: Werner Co.
